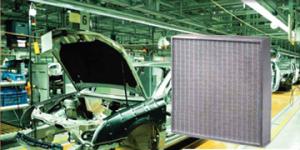

HT Oven Filters
Oven filters are filters that can operate at high temperatures. Leaking is provided by high temperature gaskets to be applied on the desired surface. Due to the minipile technology, the maximum filtration area has been created. There are temperature-resistant protective support plates on both sides of the filters. Due to these plates, damage to the filter during transportation and assembly is prevented. In the production of HT furnace filters, fiberglass paper consisting of very thin fibers is used, and the outer case is made of aluminum.
Özellikler
- It tested according to EN 779.
- The flammability is F1 according to DIN 53438, it is self-extinguishing.
- Moisture resistance is up to 100% relative humidity.
- Temperature resistance is maximum 230 ° C / 380 ° C.
- It does not contain silicone.
Çeşitleri
- Standard case thicknesses are 22 mm / 40 mm / 55 mm / 78 mm and 150 mm.
- Stainless steel, aluminum or galvanized can be used as a protector.
Filtre Sınıfı
- M6 (EU6/F6)
- F8 (EU8)
Uygulamalar
- It is mostly used in the final filtration,
- in paint drying ovens,
- in high temperature food and electronics industry.
